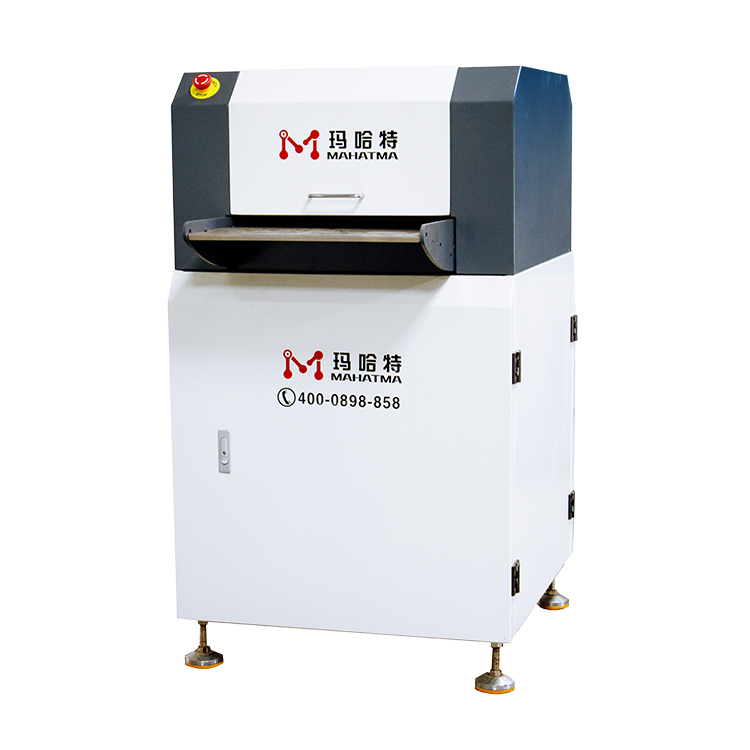

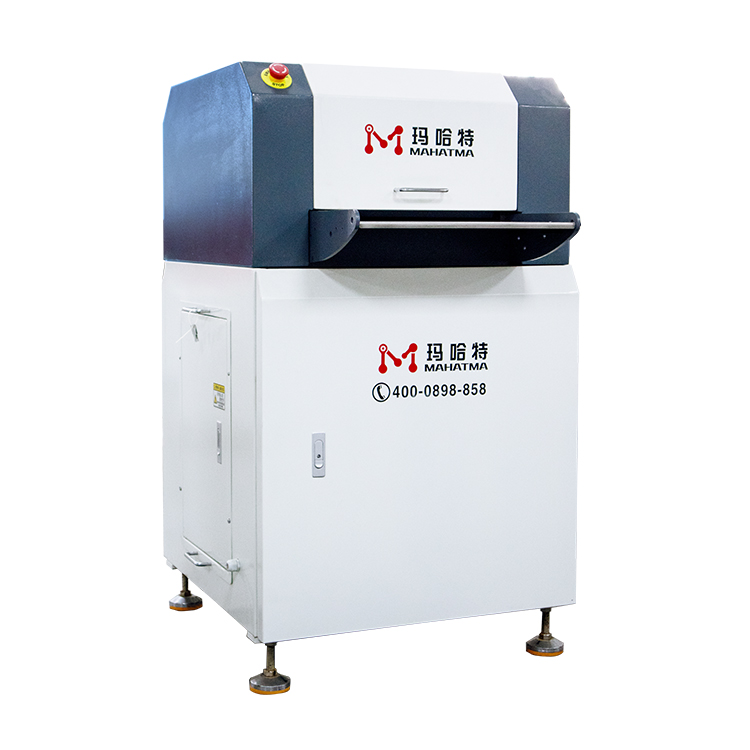

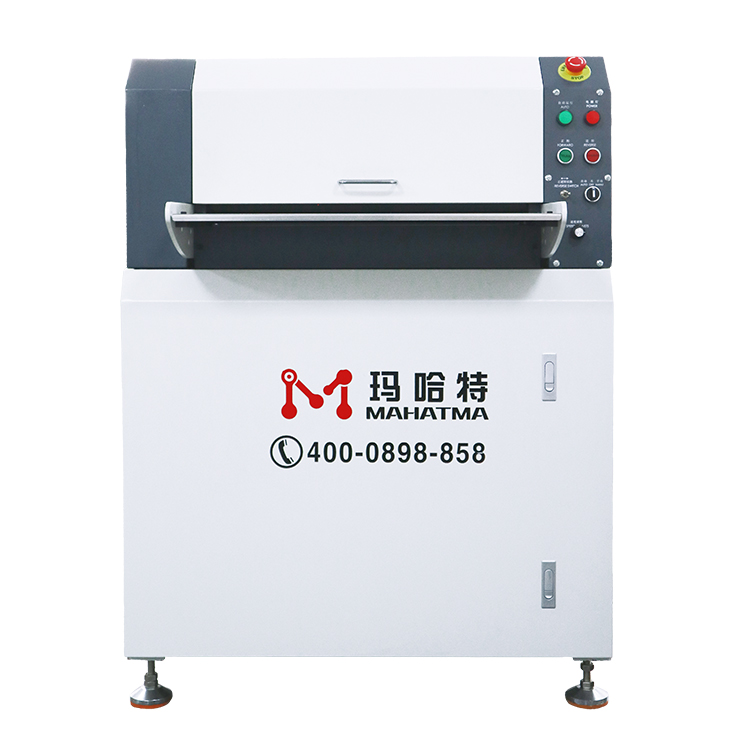

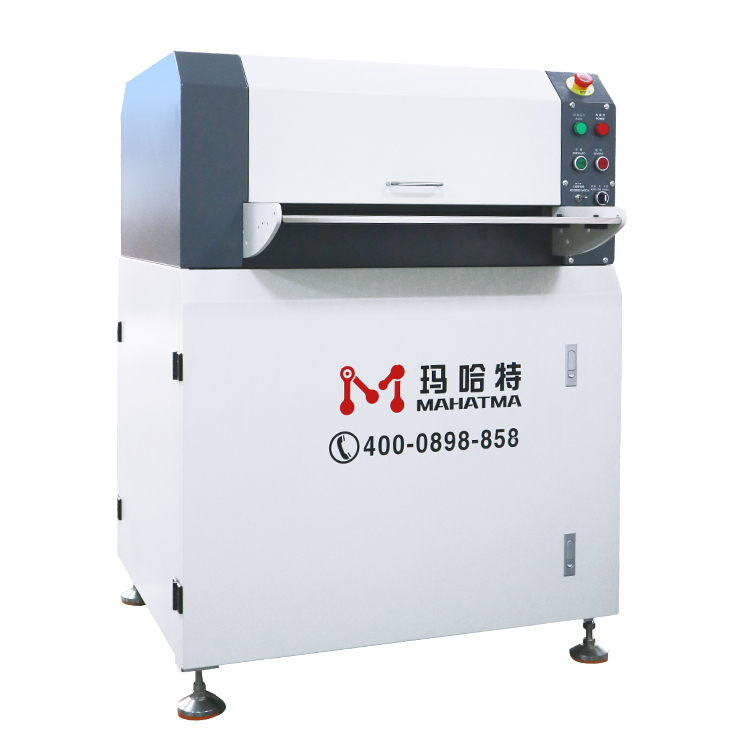

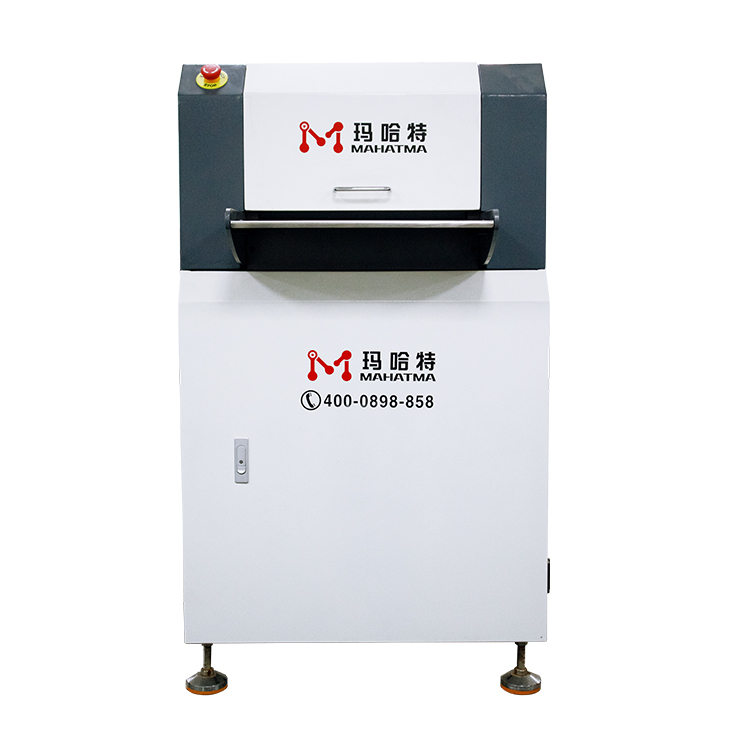

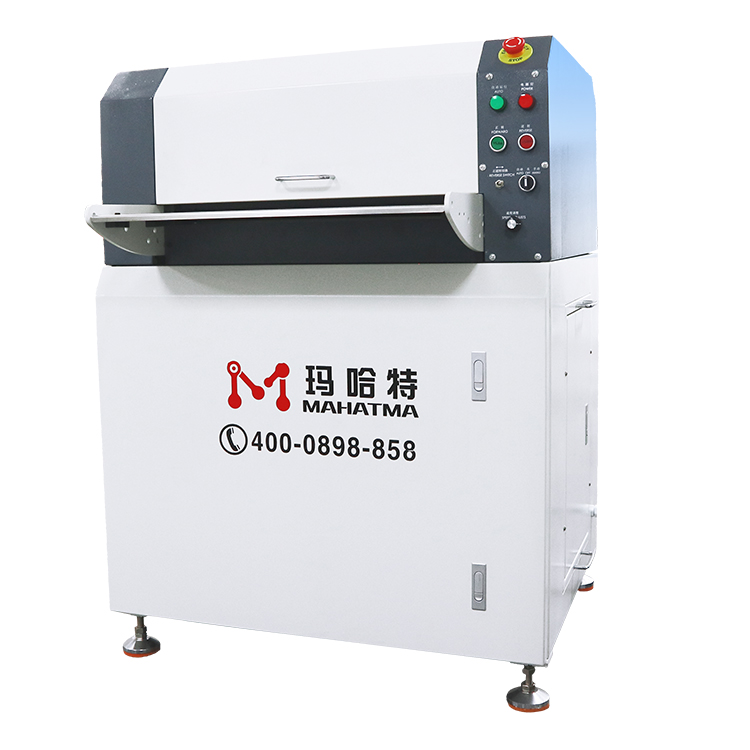

This series of levelers are not as good as high-end levelers in terms of performance and automation, but their simple design, easy operation and maintenance make them an ideal choice for many small processing companies and low-cost production lines. It aims to use the "Bauschinger effect" of the material to repeatedly bend the plate to eliminate the internal stress of the material, level the flatness of the material, and achieve the flatness accuracy required by the process! Compared with highly automated straightening machines, this leveling machine may require more manual operations, such as manually adjusting the roll gap. It is more suitable for small batch production or low-frequency processing needs. The cost is relatively low, and it is suitable for those with limited budgets. Or used in small processing sites that do not require high straightening accuracy.
| Model | VTS42-200-19 | VTS42-400-19 | VTS42-600-19 |
| Width | 0-200mm | 0-400mm | 0-600mm |
Roll diameter | 42 | 42 | 42 |
| Rated thickness | 0.4-3.0mm | 0.4-3.0mm | 0.4-3.0mm |
| Maximum thickness | 6.0mm | 6.0mm | 6.0mm |
| Number of rolls | 19 | 19 | 19 |
| Shortest part | 70 | 70 | 70 |
| Leveling speed | 0-12m/min | 0-12m/min | 0-12m/min |
| Voltage | AC three-phase 380V AC3-phase 380V | AC three-phase 380V AC3-phase 380V | AC three-phase 380V AC3-phase 380V |
| Optional | 1.Loading and unloading and reclaiming manipulators2. Loading and unloading joint robots 3.Automatic detection platform 4. inlet and outflow assembly line 5. Automatic stacking lifting platform 6. Roller quick cleaning device | ||
We provide not only equipment but also professional services throughout the entire lifecycle:
