Home > Products > CNC Precision Part Leveler > CNC Leveling Machine MHTM150

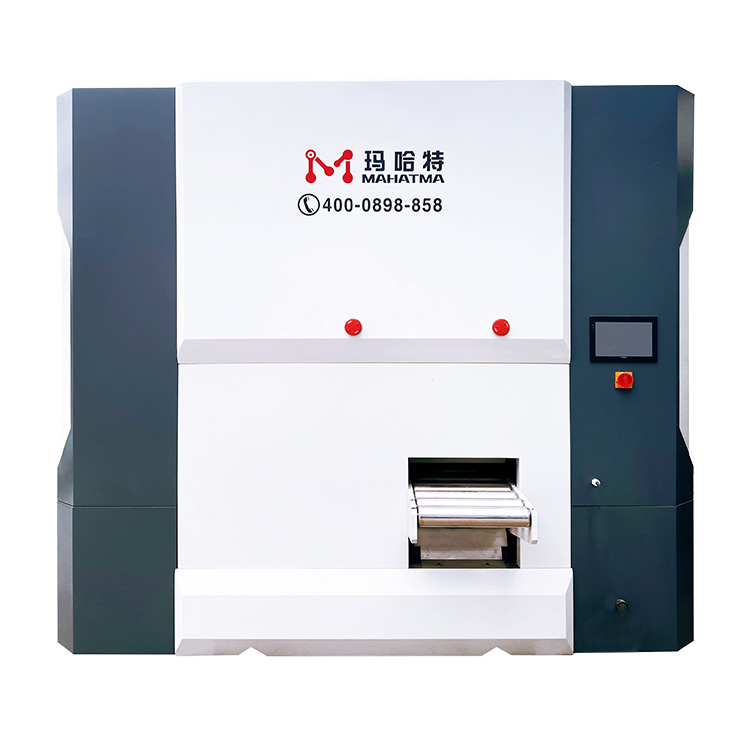

CNC Leveling Machine MHTM150
Thickness:6.0-25.0mm

  • Presentation
  • Parameter
  • Video
  • Recommended Products
  • Inquiry

Presentation

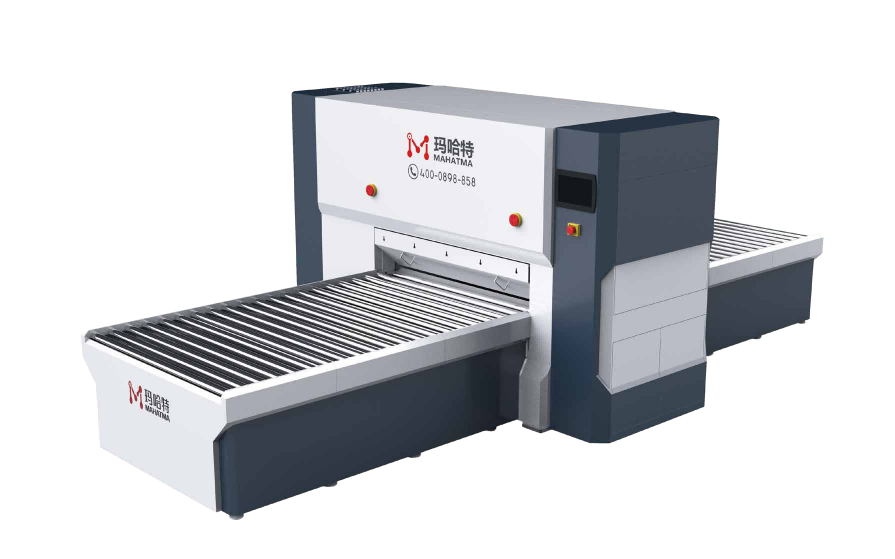

1726878156537164

Compared with other ordinary leveling methods, the serie of control systems have the functions of storing, calling and editing process and equipment parameters, and have the function of identifying and warning of misoperations. The 10-inch high-precision touch screen displays. When in use, on the operating platform the inlet and outlet reduction can be set according to parameters such as plate thickness, plate width, material strength or existing parameters in the database, so as to realize the work roll entry and exit clearance etc. Electric adjustment and can be adjusted and corrected manually. Compared with traditional manual leveling methods, CNC leveling machines greatly improve production efficiency. Suitable for sheet metal processing that requires higher flatness and straightness.

Under large elastic-plastic bending conditions, CNC Metal Straightening Machines utilize the "Bauschinger effect" to repeatedly bend metal plates, effectively reducing deflection and transforming multiple curvatures into a single, desired curvature for precise flatness. These machines are prevalent in the industry due to their advanced technology, high leveling accuracy, and automation, ensuring stable operation even under high strength. The roller leveling process involves alternating bending, with motor and PLC-controlled pressure adjustments to eliminate internal stress and improve leveling outcomes across different board sections.

Compared to other leveling methods, these machines feature a sophisticated control system that allows for the storage, recall, and editing of process parameters, along with misoperation alerts. Operators can set inlet and outlet pressure reductions based on variables like plate thickness and material strength, enabling both electric and manual adjustments for work roll clearance.

Key features include an auxiliary wheel that minimizes the gap between rollers for enhanced accuracy, a 10-inch high-precision touch screen for intuitive control, and the ability to flatten stamped parts and plates quickly and with minimal stress. The precision leveling process involves multiple staggered bending actions that align metal fibers and relieve internal stress, resulting in naturally flat sheets. Unlike cutting methods that waste material, precision leveling saves resources and significantly boosts efficiency, integrating seamlessly into continuous production lines and reducing labor costs. The universal joint transmission enhances durability, uniform force transmission, and low noise operation.











Benchmark Performance

The fastest leveling speed is 10m/min; the maximum thickness is 0.03-30mm;

High Cost Performance

high-quality performance, super cost-effective, maximized return on investment value provide long-lasting stability;

Precision Craftsmanship

The support structure is fine and densely arranged to ensure leveling quality, reduce friction and lasting stability;































Intelligent Operation

Intelligent CNC adjustment, automated operation, easy to operate, quick to get started, intelligent management, improved efficiency;

Energy Saving and Environmental Protection

Using precision motor drive, energy consumption is reduced by 50%, cost reduction and efficiency increase, environmental protection and economy;

Safe and Reliable

Comprehensive safety protection, early warning of misoperation, ensuring production safety;








































Flexible Customization

We can customize production according to customer needs to meet the processing needs of different industries and specifications and provide customized solutions for customers;

Efficient Collaboration

Supports collaborative work with other equipment and linkage with upstream and downstream equipment to achieve efficient and coordinated operation of the production line.



Parameter

Model

MHTM150-400

MHTM150-800

MHTM150-1300

MHTM150-1600

MHTM50-2100

Width0-400mm0-800mm0-1300mm0-1600mm0-2100mm

Roll diameter

150150150150150
Rated thickness6.0-25.0mm6.0-25.0mm6.0-25.0mm6.0-25.0mm6.0-25.0mm
Maximum thickness30.0mm30.0mm30.0mm30.0mm30.0mm
Number of rolls15/1915/1915/1915/1915/19
Shortest part240240240240240
Leveling speed0-10m/min0-10m/min0-10m/min0-10m/min0-10m/min
Voltage

AC three-phase 380V

AC3-phase 380V

AC three-phase 380V

AC3-phase 380V

AC three-phase 380V

AC3-phase 380V

AC three-phase 380V

AC3-phase 380V

AC three-phase 380V

AC3-phase 380V

Optional

1.Loading and unloading and reclaiming manipulators2. Loading and unloading joint robots 3.Automatic detection platform

 4. inlet and outflow assembly line 5. Automatic stacking lifting platform 6. Roller quick cleaning device
