High-Precision Automatic Unwinding, Leveling, and Stamping Line

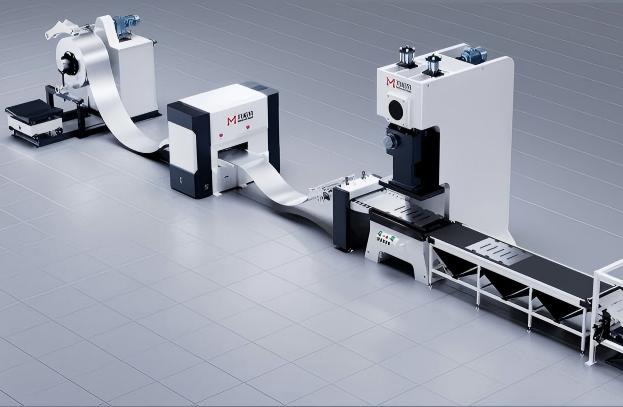

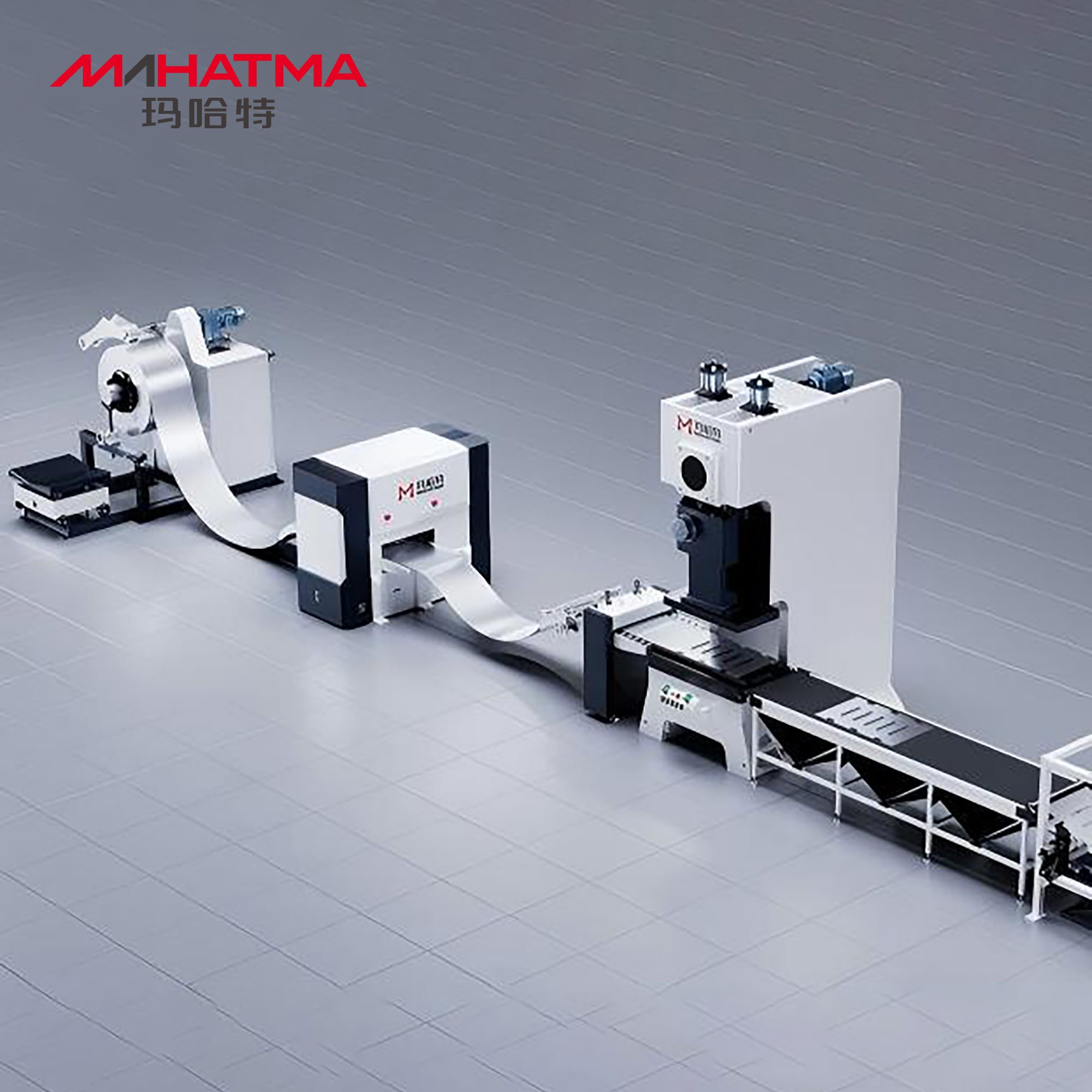

The High-Precision Automatic Unwinding, Leveling, and Stamping Line is a fully automated production line that integrates unwinding, leveling, and stamping processes. It is specifically designed for the continuous stamping and forming of metal coils, such as steel and aluminum sheets. Through high-precision stamping and intelligent control, it enables the rapid forming of complex parts. The line achieves a material utilization rate of over 98% and increases efficiency by more than three times compared to traditional standalone machines. It is particularly suited for high-volume, precision manufacturing needs, including automotive components and building curtain walls, saving labor and materials while ensuring stable quality.

If you have more questions to ask us and get best quote, please contact us now directly via

WhatsApp or Email:

Technical Features

Its integrated design compactly combines unwinding, leveling, and flying shearing with a minimal footprint.
The system enables high-speed, precise sheet cutting for efficient large-order processing.
It delivers high-speed, high-precision stamping to significantly boost productivity for mass production.
Built on Industry 4.0, it features MES/ERP connectivity for smart manufacturing integration.

NO roller imprint exists, meet high precision

Parameters and Selection Guide

Production Line Series and Application Scope

Series Nam	Thickness Range	Examples of Applied Industries	Materails
UC Ultra-Thin Plate Series	0.1–0.8 mm	Flexible circuit board pins / IC substrates Minimally invasive surgical blades / Precision springs Vascular stents / Spacecraft deformable structures Lithium battery aluminum casing / Pharmaceutical blister packaging	Electrolytic copper foil (12-70μm) Stainless steel foil (0.1mm) Nickel-titanium shape memory alloy (Nitinol) Aluminum-plastic composite film
TC Thin Plate Series	0.4–1.5 mm	New energy vehicle battery casing / Drone airframe Automotive crash beam / Airbag bracket Laptop chassis / Aircraft instrument panel Automotive lightweight components / Sports equipment	Aluminum alloy (6061-T6) High-strength steel (DP780) Magnesium alloy (AZ31) Carbon fiber reinforced plastic (CFRP)
MC Medium - Heavy Plate Series	0.8–4.0 mm	Container corrugated sheet / Building façade Chemical reactor / Seawater desalination equipment High-speed rail interior panel / Radome Ship condenser tube sheet / Seawater pipeline	Weathering steel (Corten A) Titanium alloy (Gr2) Composite sandwich panel Copper-nickel alloy (B10)
HC Heavy Plate Series	3.0–16.0 mm	Mining machinery boom / Bridge node Deep-sea oil pipeline / LNG storage tank Welding electrode / Rocket nozzle Armored vehicle ballistic layer / Satellite support structure	Ultra-high strength steel (S960QL) Duplex stainless steel (2507) Tungsten-copper alloy (W-Cu) Metal matrix composite (MMC)
XC Extra-Heavy Plate Series	6.0–25.0 mm	Nuclear reactor pressure vessel / Aero-engine casing Spacecraft turbine blade / Supersonic missile airframe Space telescope mirror blank / High-energy laser base	High-nickel alloy (Inconel 625) Titanium aluminide intermetallic compound Silicon carbide particle-reinforced aluminum

Comparison of Core Parameters Across Series

Parameter Category	UC Ultra-Thin Plate Series	TC Thin Plate Series	MC Medium - Heavy Plate Series	HC Heavy Plate Series	XC Extra-Heavy Plate Series
Thickness Range	0.1–0.8mm	0.4–1.5mm	0.8–4.0mm	3.0–16.0mm	6.0–25.0mm
Width Range	400–1300mm	600–2600mm	600–2600mm	600–2600mm	600–2600mm
Line Speed	0-60m/min optional	0-40m/min optional	0-20m/min optional	0-10m/min optional	0-10m/min optional
Leveling Accuracy	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm
Roll Weight	0.5-5T optional	5-10T optional	10-20T optional	10-30T optional	10-30T optional
Feeding Accuracy	±0.3-1.0mm/m	±0.3-1.0mm/m	±0.3-1.0mm/m	±0.3-1.0mm/m	±0.3-1.0mm/m
Leveling Machine	Manual/CNC/Hydraulic	Manual/CNC/Hydraulic	Manual/CNC/Hydraulic	CNC/Hydraulic	CNC/Hydraulic

Some parameters are for reference only. Final specifications are subject to customization.

Comprehensive Services and Support

We provide not only equipment but also professional services throughout the entire lifecycle:

Pre-Planning
Production demand analysis, layout optimization, and return on investment assessment.
Installation & Commissioning
Professional teams ensure rapid equipment startup.
Operator Training
Multi-level training in system operation, program-ming, and maintenance.
Remote Diagnostics
24/7 equipment status monitoring and fault early warning.
Rapid Response
Nationwide service network with 4-hour technical response.
Process Optimization
Continuous technology updates to maintain equipment competitiveness.
