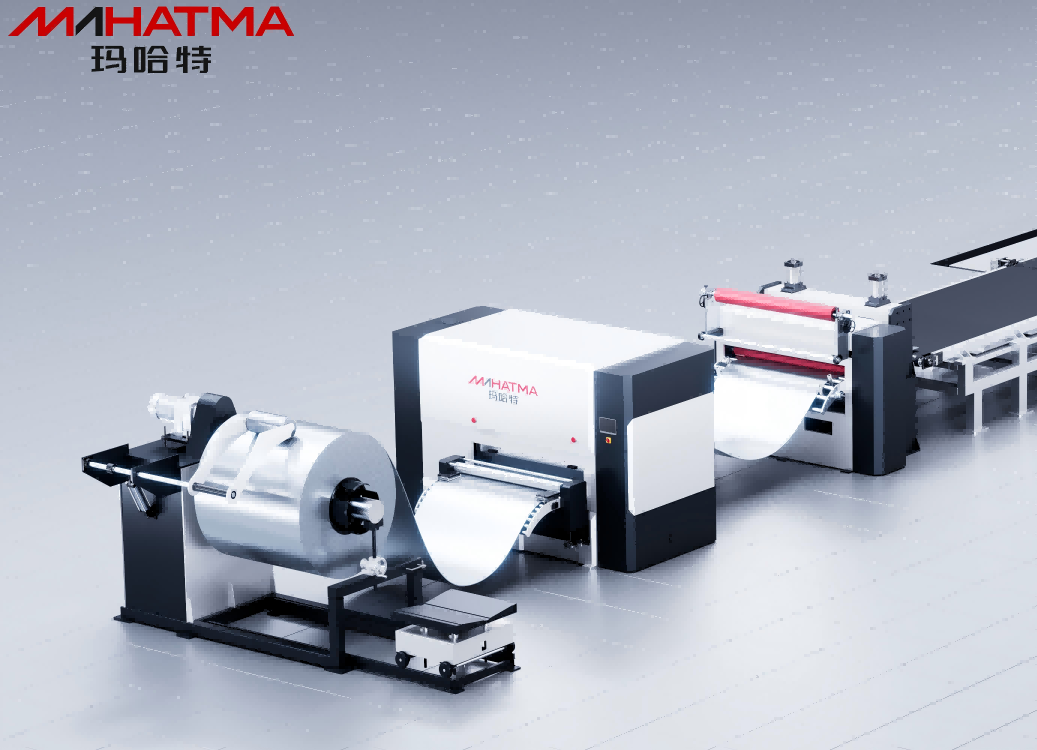

High-precision automatic unwinding, leveling, and cross-cutting line

This production line adopts an integrated, compact design that incorporates high-precision leveling, accurate shearing, automatic blanking, and modularized components. This design significantly reduces the footprint and simplifies maintenance. Equipped with a fully automatic cross-cutting system and high-precision blanking modules, it allows for fixed-length and fixed-width cutting with intelligent stacking, thereby greatly enhancing the efficiency and accuracy of batch production. At its core, the automation control system, built on Industry 4.0 principles and featuring integrated MES interfaces, guarantees seamless connectivity with enterprise ERP systems, enabling complete traceability of production data across the entire process.

If you have more questions to ask us and get best quote, please contact us now directly via

WhatsApp or Email:

Technical Features

【Integrated & Compact Design】Reduces footprint, simplifies operation.
【Flexible Modular Design】Easy to upgrade, expand, and reconfigure.
【Precision Shearing System】Ensures accurate, high-speed cutting for batch production.
【Automatic Unloading & Stacking】Boosts speed and accuracy, minimizes manual work.
【High-Precision Leveling】Handles various materials and thicknesses with consistent results.
【Smart Control System】Industry 4.0 ready with MES/ERP connectivity for full traceability.

Meet high precision

Parameters and Selection Guide

Production Line Series and Application Scope

Series Name	Thickness Range	Examples of Applied Industries	Common Materials
UD Ultra-Thin Plate Series	0.1–0.8 mm	Lithium battery copper foil electrode slitting,Flexible OLED substrate,EM shielding film cutting,Superconducting cooling tape,Food packaging aluminum foil,Photovoltaic backsheet PET film	Copper foil,Aluminum film,Polyimide,Composite materials,Polymer films
TD Thin Plate Series	0.3–3.0 mm	New energy vehicle battery trays, Smartwatch metal midframes, Elevator mirror decorative panels, Medical CT machine housings, Drone airframes, Smart home control panels, Rail transit interior trim panels, Precision instrument enclosures, Industrial robot protective shields	Aluminum alloy , Stainless steel , Galvanized steel sheet , Color coated steel sheet , Anodized aluminum
MD Medium - Heavy Plate Series	1.0–8.0 mm	High-speed rail car side panels,Data center server racks ,Cold chain logistics containers,Agricultural harvester blades,Multi-level parking garage frameworks,Commercial kitchen equipment,Environmental dust collector housings,Ship bulkhead panels,Wind turbine control cabinets	Weathering steel,High-strength steel,Stainless steel,Sandwich panel,Anti-corrosion coated steel
HD Heavy Plate Series	3.0–20.0 mm	Oil pipeline flanges,Excavator track plates,Bridge steel structures,Heavy-duty truck frames,Pressure vessel heads,Mining crusher teeth plates,Injection molding machine templates,Marine propeller components,Hydraulic press columns	Wear-resistant steel,High-strength steel,Titanium alloy,Hot-rolled plate,Alloy cast steel,Quenched steel
XD Extra-Heavy Plate Series	6.0–25.0 mm	Aircraft carrier flight decks,Rocket launch pads,Nuclear reactor pressure vessels,Deep-sea drilling platforms,10,000-ton hydraulic press bases,Hydroelectric turbine casings,Spacecraft support rings,Particle accelerator chambers,Seismic-resistant structures for super-tall buildings	Armor steel,High-nickel alloy,Stainless steel clad plate,Special alloy,Metal matrix composite

Comparison of Core Parameters Across Series

Parameter Category	UD Ultra-Thin Plate Series	TD Thin Plate Series	MD Medium - Heavy Plate Series	HD Heavy Plate Series	XD Extra-Heavy Plate Series
Thickness Range	0.1–0.8mm	0.3–3.0mm	1.0–8.0mm	3.0–20.0mm	6.0–25.0mm
Width Range	400–1300mm	600–2600mm	600–2600mm	600–2600mm	600–2600mm
Line Speed	0-60m/min optional	0-60m/min optional	0-50m/min optional	0-50m/min optional	0-25m/min optional
Accuracy	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm	0.1-0.5mm 0.5-1.0mm Above 1.0mm
Roll weight	0.5 to 5T optional	5 to 20T optional	10 to 30T optional	10 to 30T optional	10 to 30T optional
Leveling Machine	Manual/CNC/Hydraulic	Manual/CNC/Hydraulic	Manual/CNC/Hydraulic	CNC/Hydraulic	CNC/Hydraulic

Some parameters are for reference only. Final specifications are subject to customization.

Comprehensive Services and Support

We provide not only equipment but also professional services throughout the entire lifecycle:

Pre-Planning
Production demand analysis, layout optimization, and return on investment assessment.
Installation & Commissioning
Professional teams ensure rapid equipment startup.
Operator Training
Multi-level training in system operation, program-ming, and maintenance.
Remote Diagnostics
24/7 equipment status monitoring and fault early warning.
Rapid Response
Nationwide service network with 4-hour technical response.
Process Optimization
Continuous technology updates to maintain equipment competitiveness.
