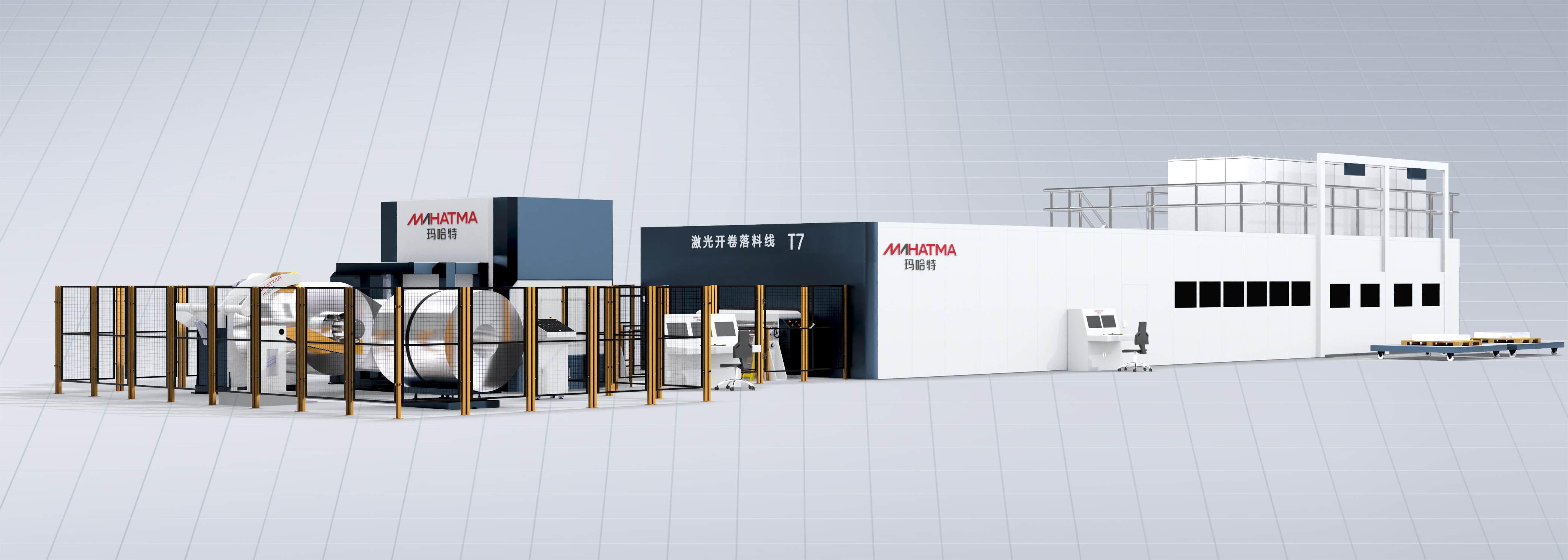

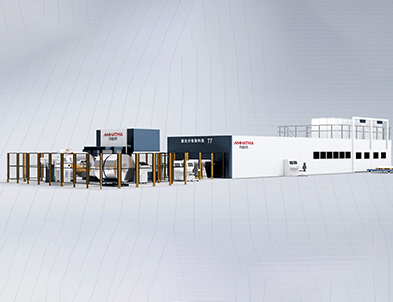

Belt-supported Non-Destructive Cutting Flexible Production Line

This belt-supported, non-destructive cutting flexible production line cuts single products from a single roll of material. After unwinding and leveling, the material enters the laser cutting unit. A dedicated belt conveyor feeds the material to the cutting area, where it undergoes dynamic cutting with dual heads, either synchronously or asynchronously. The finished material is then transported via a belt-driven rolling platform to a conveyor belt assembly line for sorting or automatic palletizing.

If you have more questions to ask us and get best quote, please contact us now directly via

WhatsApp or Email:

Technical Features

Ensures gentle handling of materials, preventing deformation during processing.
Materials are automatically unrolled and leveled before entering the laser cutting unit for precise cuts.
Supports synchronous or asynchronous cutting to improve efficiency and flexibility for single-product batches.
Cut sheets are conveyed via belt and roller platforms to sorting or automatic stacking systems for streamlined post-processing.

Belt-supported type

Parameters and Selection Guide

Parameter	Specification / Options
Acceleration	1.5g
Maximum Material Weight	5t–20t (optional)
Positioning Accuracy	±0.02mm/m
Leveling Accuracy	0.1–0.5mm/㎡
Laser Cutting Area	6020 / 8020 / 12020
Bed Platform	Fully enclosed, belt-supported
Maximum Material Width	2800mm
Leveling Machine Type	CNC type / Hydraulic type
Maximum Material Thickness	12.0mm
Laser Cutting Area	35 m/min
Laser Power	2000W–20000W (optional)
Optional Equipment	Laminating machine, truss suction cup, robot, waste material collection rack, automatic stacking machine

Comprehensive Services and Support

We provide not only equipment but also professional services throughout the entire lifecycle:

Pre-Planning
Production demand analysis, layout optimization, and return on investment assessment.
Installation & Commissioning
Professional teams ensure rapid equipment startup.
Operator Training
Multi-level training in system operation, program-ming, and maintenance.
Remote Diagnostics
24/7 equipment status monitoring and fault early warning.
Rapid Response
Nationwide service network with 4-hour technical response.
Process Optimization
Continuous technology updates to maintain equipment competitiveness.
